Even a 0.1 mm shaft offset can induce torsional vibration, elevate bearing temperatures and shave years off propulsion assets. Ship’s Solutions combats misalignment with wireless laser systems and portable machine shops that deliver shore-level accuracy right inside the engine room.

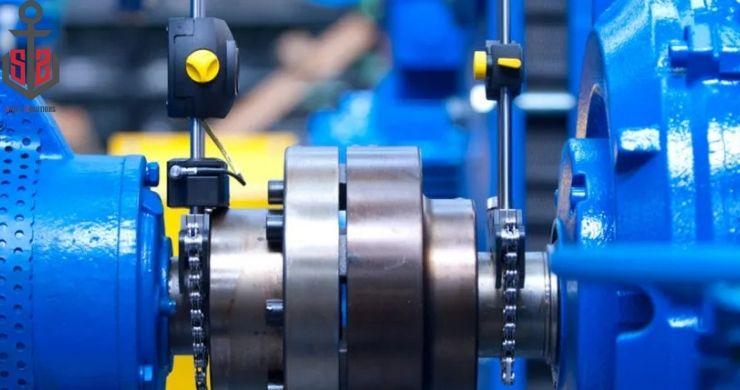

Laser beams map horizontal and vertical offsets in real time; engineers tweak chocks live and routinely hit ≤0.03 mm tolerances—far tighter than class minimums. When ovalised housings require metal removal, portable boring bars anchored to custom jigs re-bore diameters up to 600 mm without extracting the shaft, cutting weeks from a dry-dock schedule.

Tooling choices matter. PCD inserts tackle hardened surfaces, CBN handles cast iron; mirror finishes at Ra ≤ 0.8 µm secure hydrodynamic film stability. Thermal imaging confirms no heat-affected zones, preserving parent-metal integrity. Proper alignment reduces propulsion friction and can lower fleet fuel consumption by 1 %.

Precision extends beyond engines. We laser-align cargo pumps, AC compressors and deck cranes; 3D trackers feed CAD models for new pipe runs, eliminating fit-up rework. Single-vessel gains may seem small, but aggregated across twenty hulls the savings are enormous.

Deploying laser alignment and in-situ machining as routine practice—not emergency medicine—turns microscopic accuracy into macroscopic gains: fewer bearing renewals, lower vibration complaints and measurable drops in OPEX and emissions.
